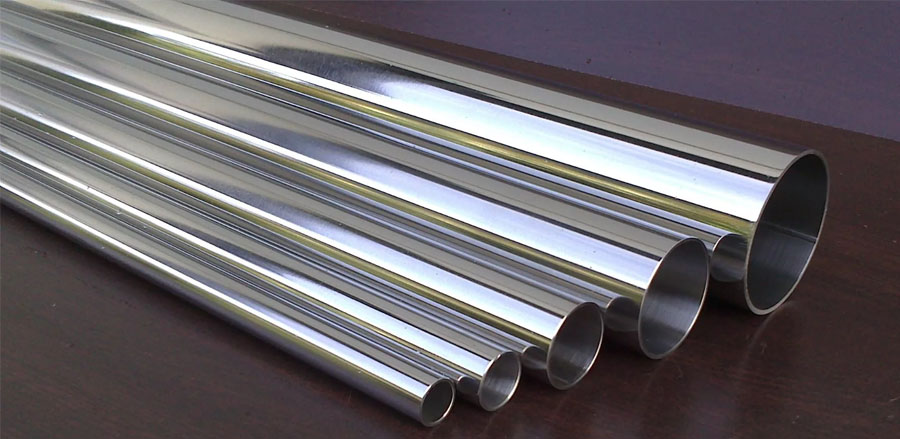

Stainless Steel Welded Pipes & Tubes
-------------------------------------------------------------------------------------------------------------------
Stainless Steel welded pipes & tubes finds wide range of application in Oil and Gas Exploration, Refineries & Petrochemicals, Thermal and Nuclear Power Plants, Chemical Industries, Fertilizer Plant, Desalination Plants, Aero-Space, Pharmaceutical, Food and Dairy, Automobile Sugar, Paper Industries etc.
The tubes are supplied according to appropriate standards as well as customer specifications in a large variety of steel grade and dimensions. Specific requirements on execution, tolerances, lengths, mechanical and corrosion properties are offered on request.
Specification:-
| Products |
Size / Range |
Thickness |
Specification |
| Instrumentation, Heat Exchanger and General Engineering Tubes |
10.00 MM to 114.30 MM OD |
0.70 MM to 4.00 MM |
A-249, A-268, A-269, A-270, A-554, A-688, A-778, A-789 DIN-17455 & 17457 ( Class-1) U-Tubes as per Customer's Drawing |
| Automobile Exhaust Tubes |
20.00 MM to 88.90 MM OD |
0.70 MM to 2.00 MM |
As per Customer's Requirement |
| Welded Pipes |
1/8" to 1" NB Ab. 1" to 2" NB Ab. 2" to 12" NB |
Sch. 5,10,40,80(S) Sch. 5,10,40(S) Sch. 5,10,40(S) |
ASTM A-312, A-554, A-778, A-790 |
| Grades: TP-304/L/LN/H, TP-316/L/LN/H/Ti, TP-317L, TP-321/H, TP-347/H TP-409, TP-410, TP-430Ti, T-439 |
Materials & Grades
|
Material
|
Grades (Pipes & Tubes)
|
| Carbon Steel |
ASTM A106 Gr. A/B/C, ASTM A53 Gr. A/B, API 5L Gr. B/X42/X52/X60/X65/X70, ASTM A333 Gr. 6, ASTM A210, ASTM A519
|
| Stainless Steel |
ASTM A312 TP304/304L/304H, TP316/316L/316Ti, TP321/321H, TP347/347H, TP310/310S, TP904L
|
| Alloy Steel |
ASTM A335 P1, P5, P9, P11, P12, P22, P91, ASTM A213 T1, T5, T9, T11, T22, T91
|
| Titanium |
Gr.1, Gr.2, Gr.5 (Ti-6Al-4V), Gr.7, Gr.9, Gr.12 (ASTM B338 / B861 / B862)
|
| Inconel |
Inconel 600, 601, 625, 718, X-750 (ASTM B167 / B444 / B705)
|
| Monel |
Monel 400, Monel K500 (ASTM B165 / B725)
|
| Beryllium Copper |
C17200, C17500, C17510 (ASTM B196 / B197 / B643)
|
|
|
|
